AVR32-Development Module
Model: AL-UC3CRAM V1.3

Construction:

- Controller: Atmel AVR32 AT32UC3C0512C up to 66 MHz

- Equipment:

• linear voltage regulator 3.3V

• 256 MBit SDRAM

• reset and boot key

• Power LED

• JTAG interface

• 78x external I/O

- optional equipment:
on request

• JTAG connector

• site pin connectors

• microSD card slot

• CAN driver

- Voltage Supply:

• external 3.3V

• external 5.0-12V

• USB 5V

- Module size: W x H x D 84 mm x 48 mm x 7 mm

- Operating temperature:

• -25°C up to +70°C with microSD card slot

• -40°C up to +70°C without microSD card slot

- Quartz:  12MHz

- Interfaces:

• USB

• CAN

• JTAG

- Compatibility: compatible with hole matrix board 2.54 mm

- Circuit: built on the recommendation of the manufacturers

- Programming:

• JTAG connector (10-pin) or

USB boot loader

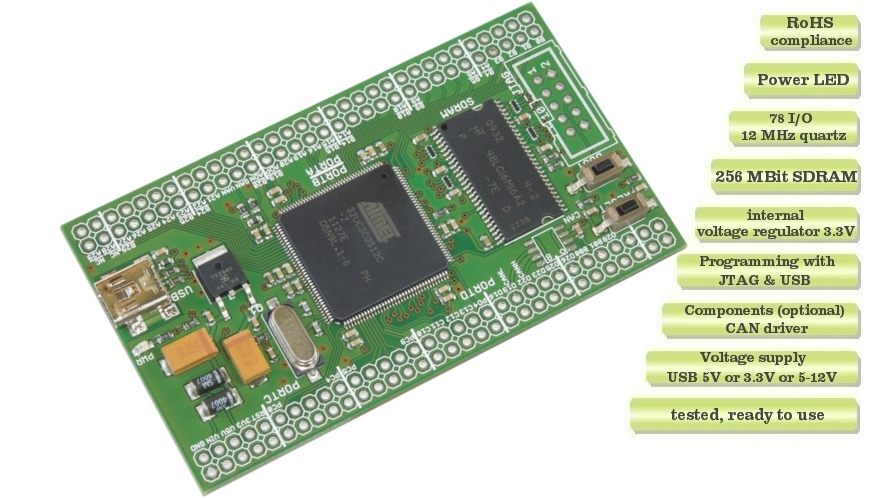

- Pin configuration: shown at the left picture

- Pin configuration JTAG: 10-pin, standard of Atmel

- Functionality: tested, ready to use

- Conformity: RoHS Compliance

- Produced in Germany

Controller:

- Atmel AVR32 AT32UC3C0512C

- 512K Bytes Flash

- 64K Bytes Int. SRAM

- 123 x Prog. I/O Lines

- 16 x ADC Channels

- 4 x PWM Channels

- 5 x Serial USARTs

- 6 x Timer/Counter

- USB 2.0 Full Speed

- Ethernet MAC 10/100

- Internal Oscillator

- SPI und TWI

- 0 - 66 MHz

- 3.3V or 5V

- more ...

Scope of delivery:

- 1x AVR32-Module without optional equipment,

- invoice with 2 years guarantee

Links:

data sheet
schematic
first step
AL_LIB_UC3
Eagle library
