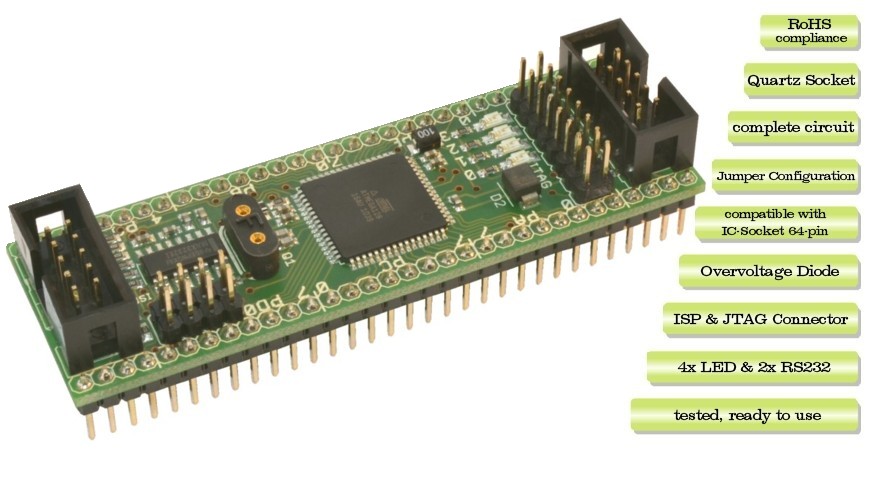

AVR-Development Module
Model: AL-AVREB
7.3728
MHz

8.0000
MHz

11.0592
MHz

14.7456
MHz

16.0000
MHz

Construction:

- Controller: Atmel AVR ATmega128A-AU up to 16 MHz

- Supply voltage: 3-5 V

- Module size: W x H x D  27 mm x 83 mm x 19.3 mm

- Operating temperature: -40°C up to +85°C

- Quartz socket: simple and fast quartz exchange

- PC-Connection: 2 x RS232, separable with jumpers

- Compatibility: compatible with IC-Socket 64-pin and hole matrix board

- Pin-Distance: 2.54 mm

- LED: 4 LEDs, separable with jumpers

- Circuit:  built on the recommendation of the manufacturer

- Programming: ISP or JTAG connector or BOOTLOADER

- Pin configuration of AVR-Module: shown at the left picture

- Pin configuration ISP & JTAG connectors: 10-pin, standard of Atmel

- Functionality: tested, ready to use

- Conformity: RoHS Compliance

- Produced in Germany

- Free of charge:

one desired quartz inclusive

  7.3728 MHz;

  8.0000 MHz;

  11.0592 MHz;

  14.7456 MHz;

  16.0000 MHz

Controller:

- Atmel AVR ATmega128A-AU

- 128K Bytes Flash

- 4K Bytes EEPROM

- 4K Bytes Internal SRAM

- 53 x Programmable I/O Lines

- 8 x ADC Channels

- 4 x Timer/Counter

- 2 x Serial USARTs

- 2 x PWM Channels

- Internal Oscillator

- SPI und TWI

- 0 - 16 MHz

- 2.7 - 5.5V

- more ...

Description:

We offer you more flexibility by the development. By means of quartz socket it is possible to choose another frequency easier and faster. IC-Socket makes possible the fast installation of AVR-Module and fits the hole matrix board with the hole distance 2.54 mm. All pins of micro controller are connected with the pins of module and positioned in the logical order, that makes the development work easier. The circuit of the module is built on the recommendation of the manufacturer: A/D converter, reset, ISP, JTAG, RS232, LEDs. Jumper configuration helps you to make the right settings. A suppressor diode is responsible for the security of AVR-Module. We offer you a very simple installation and use of AVR-Module for the beginner as well as for the advancer.

Scope of delivery:

- 1x AVR-Module (preconfigured, tested and ready to use),

- 1x desired quartz,

- 12x Jumpers and

- invoice with 2 years guarantee

Links:

data sheet
schematic
boot loader
boot files
Eagle library
