AVR32-Development Board

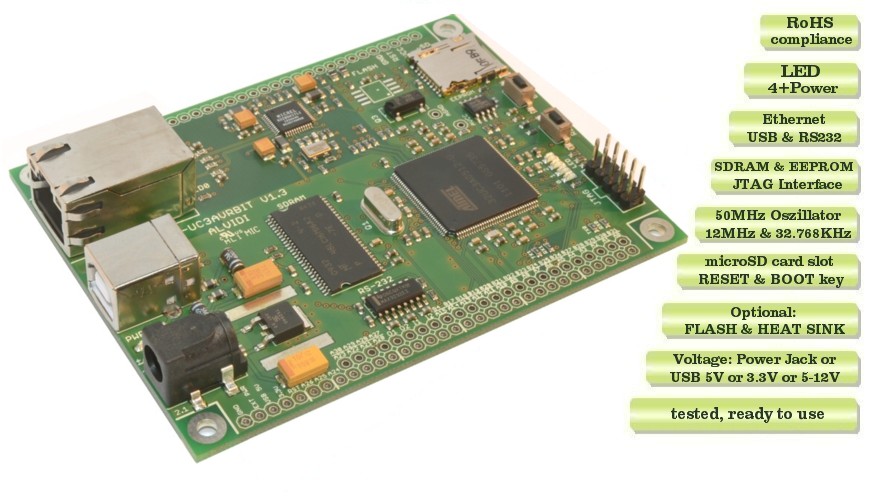

Model: AL-UC3AVRBIT V1.3

Construction:

- Controller: Atmel AVR32 AT32UC3A0512 up to 66 MHz

- Equipment:

• linear voltage regulator 3.3V

• SDRAM 256Mbit

• EEPROM 8Kbyte

• microSD card slot

• reset and boot key

• 4x LED and Power LED

• RS-232 Transceiver

• Ethernet

• JTAG connector

• 2x quartz and 1x oscillator

• 47x external I/O

- optional equipment:
on request

• DataFlash

- AT45DB161D-SU

- AT45DB321D-SU

- AT45DB642D-CNU

• heat sink FK 244 13 D PAK

- Voltage Supply:

• external 3.3V (pin)

• external pin

- 5V without heat sink

- 5,0-12V with heat sink

• USB 5V

• Power Jack

- 5V without heat sink

- 5,0-12V with heat sink

- Board size: W x H x D 100 mm x 76 mm x 18 mm

- Operating temperature:

• -25°C up to +70°C with microSD card slot

• -40°C up to +70°C without microSD card slot

- Quartz:

• 50MHz (oscillator),

• 12MHz,

• 32,768KHz

- Interfaces:

• USB

• Ethernet

• RS232

• JTAG

- Compatibility: compatible with hole matrix board 2.54 mm

- Circuit: built on the recommendation of the manufacturers

- Programming:

• JTAG MKII connector (10-pin) or

USB boot loader

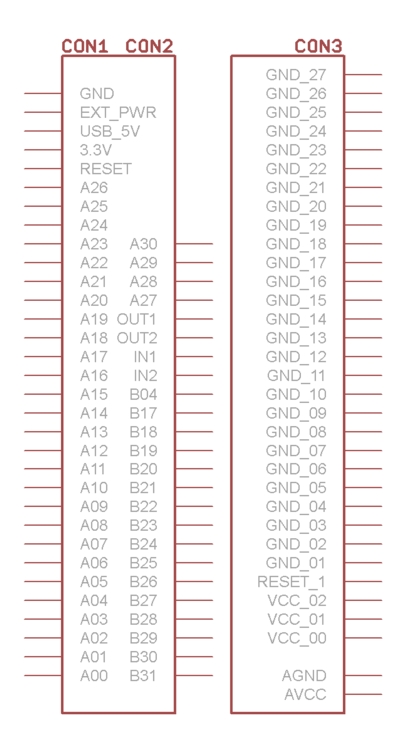

- Pin configuration: shown at the left picture

- Pin configuration JTAG: 10-pin, standard of Atmel

- Functionality: tested, ready to use

- Conformity: RoHS Compliance

- Produced in Germany

Controller:

- Atmel AVR32 AT32UC3A0512

- 512K Bytes Flash

- 64K Bytes Int. SRAM

- 109 x Prog. I/O Lines

- 8 x ADC Channels

- 7 x PWM Channels

- 4 x Serial USARTs

- 3 x Timer/Counter

- USB 2.0 Full Speed

- Ethernet MAC 10/100

- Internal Oscillator

- SPI und TWI

- 0 - 66 MHz

- 3.3V

- more ...

Scope of delivery:

- 1x AVR32-Board without optional equipment,

- invoice with 2 years guarantee

Links:

data sheet
schematic
first step
AL_LIB_UC3
Eagle library
