AVR32-Development Module
Model: AL-UC3AEB

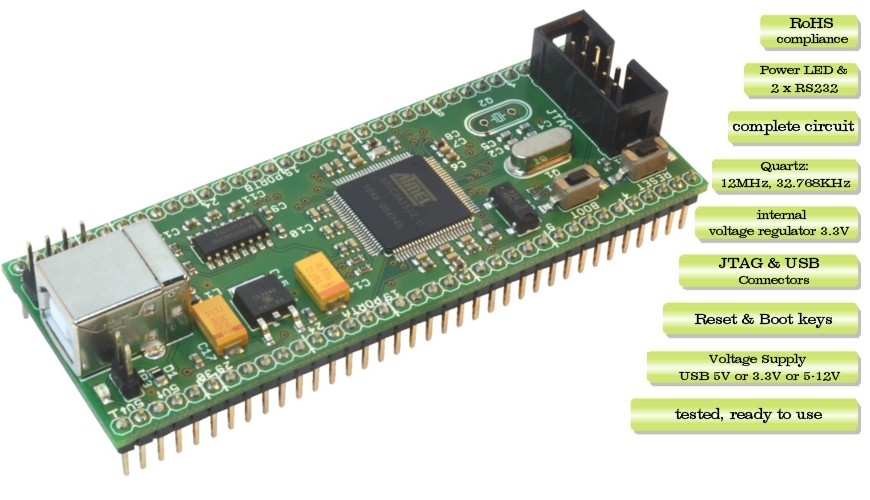

Construction:

- Controller: Atmel AVR32 AT32UC3A1512 up to 66 MHz

- Equipment:

• linear voltage regulator 3.3V

• reset and boot key

• Power LED

• JTAG interface

• USB interface

• RS232 driver

• 2x quartz and 1x additional quartz place

• 63x external I/O

- Voltage Supply:

• external 3.3V

• external 5.0-12V

• USB 5V

- Module size: W x H x D 34.2 mm x 92.5 mm x 20.2 mm

- Operating temperature: -40°C up to +85°C

- Quartz:

• 12MHz,

• 32,768KHz,

• additional quartz place

- Interfaces:

• USB

• JTAG

• RS232

- Compatibility: compatible with hole matrix board 2.54 mm

- Circuit: built on the recommendation of the manufacturer

- Programming:

• JTAG connector (10-pin) or

USB boot loader

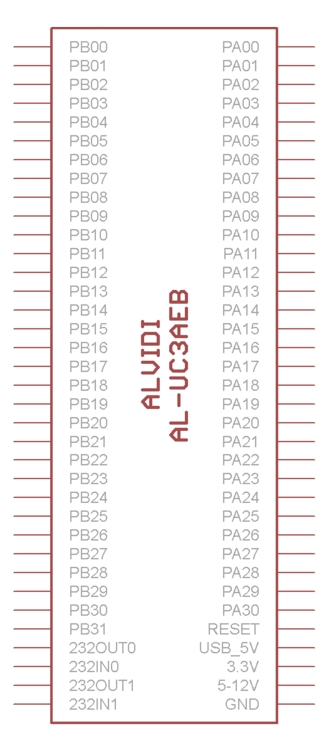

- Pin configuration of AVR32-Module: shown at the left picture

- Pin configuration JTAG: 10-pin, standard of Atmel

- Functionality: tested, ready to use

- Conformity: RoHS Compliance

- Produced in Germany

Controller:

- Atmel AVR32 AT32UC3A1512

- 512K Bytes Flash

- 64K Bytes Int. SRAM

- 69 x Prog. I/O Lines

- 8 x ADC Channels

- 7 x PWM Channels

- 4 x Serial USARTs

- 3 x Timer/Counter

- USB 2.0 Full Speed

- Ethernet MAC 10/100

- Internal Oscillator

- SPI und TWI

- 0 - 66 MHz

- 3.3V

- more ...

Description:

We offer you more flexibility by the development. The AVR32 module is completely built on the recommendation of the manufacturer Atmel. We have provided for the fact that all pins of the controller are available and are assigned in logical order to simplify the development for you. There are following options for power supply to your choice: USB voltage of 5 V, external voltage of 3.3 V or external voltage between 5 12 V. The AVR32 module is equipped with two quartz 12 MHz and 32.768 kHz and may be equipped with the third one. JTAG MKII and USB connector are installed to program the controller. Every AVR32 module is programmed with the boot loader of Atmel. Boot loader is a free program alternative. We have provided for the suitable extensions of the module, in order to make this option available to you. Additionally the AVR32 module is equipped with RS232-transceiver. The UART-pins of the AVR32 controller are connected with the transceiver. They can be separated by the jumpers. We offer you a very simple installation and use of AVR32-Module for the beginner as well as for the advancer.

Scope of delivery:

- 1x AVR32-Module (preconfigured, tested and ready to use),

- 5x Jumpers and

- invoice with 2 years guarantee

Links:

data sheet
schematic
first step
AL_LIB_UC3
Eagle library
