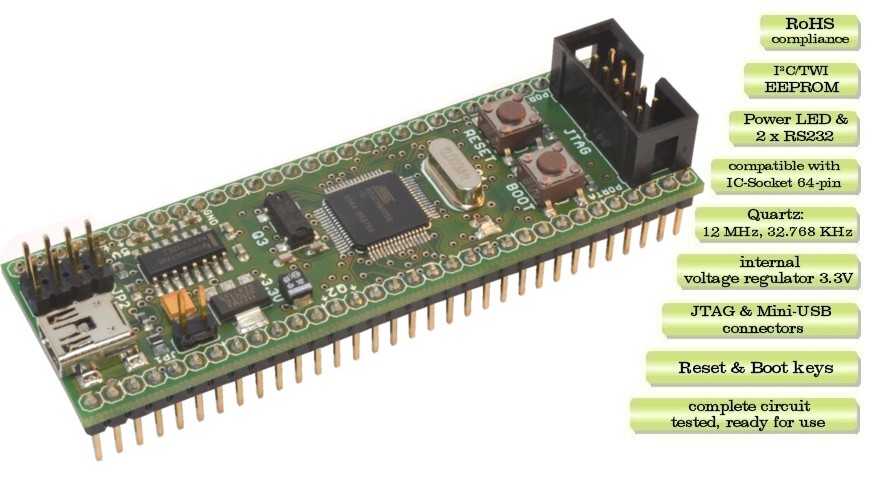

AVR32-Development Module with EEPROM
Model: AL-UC3BMB

Construction:

- Controller: Atmel AVR32 AT32UC3B0256 up to 60 MHz

- Additional equipping:

• internal voltage regulator 3.3V

• I²C/TWI EEPROM 8KByte

• RS-232 Transceiver

- Voltage Supply:

• external 3.3V or

• external 5.0-12V or

• USB 5V

- Module size: W x H x D 27 mm x 83 mm x 19.3 mm

- Operating temperature: -20°C up to +70°C

- Integrated Quartz:

• 12MHz

• 32.768KHz

• additional quartz pins

- PC-Connection:

• Mini-USB or

• 2 x RS232, separable with jumpers

- Compatibility:

• compatible with IC-Socket 64-pin

• hole matrix board 2.54 mm

- Circuit: built on the recommendation of the manufacturer

- Programming:

• JTAG MKII connector or

•  USB Boot Loader

- Pin configuration of AVR32-Module: shown at the left picture

- Pin configuration JTAG and USB:

• JTAG connector 10-pin, standard of Atmel

• Mini-USB connector 5-pin type B

- Functionality: tested, ready to use

- Conformity: RoHS Compliance

- Produced in Germany

Controller:

- Atmel AVR32 AT32UC3B0256

- 256K Bytes Flash

- 32K Bytes Int. SRAM

- 44 x Prog. I/O Lines

- 8 x ADC Channels

- 7 x PWM Channels

- 3 x Serial USARTs

- 3 x 16-bit Timer/Counter

- USB 2.0 Full Speed

- Internal Oscillator

- SPI und TWI

- 0 - 60 MHz

- 3.3V

- more ...

Description:

We offer you more flexibility by the development. The AVR32 module is completely built on the recommendation of the manufacturer Atmel. We have provided for the fact that all pins of the controller are available and are assigned in logical order to simplify the development for you. There are following options for power supply to your choice: USB voltage of 5 V, external voltage of 3.3 V or external voltage between 5 12 V. The AVR32 module is equipped with two quartz 12 MHz and 32.768 kHz and may be equipped with the third one. Additionaly was installed 8KByte I2C/TWI EEPROM. JTAG MKII and USB connector are installed to program the controller. Every AVR32 module is programmed with the boot loader of Atmel. Boot loader is a free program alternative. We have provided for the suitable extensions of the module, in order to make this option available to you. Additionally the AVR32 module is equipped with RS232-transceiver. The UART-pins of the AVR32 controller are connected with the transceiver. They can be separated by the jumpers. We offer you a very simple installation and use of AVR32-Module for the beginner as well as for the advancer.

Scope of delivery:

- 1x AVR32-Module with EEPROM (tested and ready to use),

- 5x Jumpers and

- invoice with 2 years guarantee

Links:

data sheet
schematic
first step
AL_LIB_UC3
Eagle library
