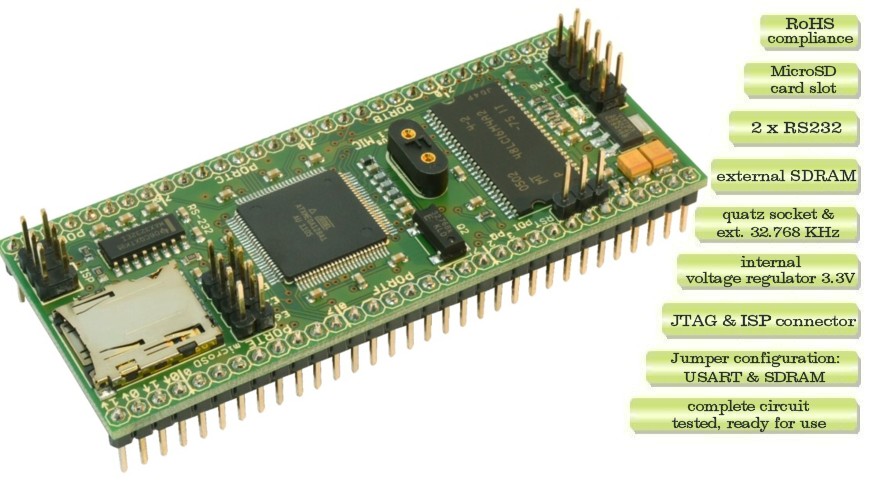

AVR ATxmega - Development Module
Model: AL-XAVRB V2.0
7.3728
MHz

8.0000
MHz

11.0592
MHz

14.7456
MHz

16.0000
MHz

Construction:

- Controller: Atmel AVR ATxmega128A1U-AU up to 32 MHz

- Equipment:

• internal voltage regulator 3.3V

• external SDRAM 64Mbit

• MicroSD card slot

• RS-232 Transceiver

• Power LED

- Voltage Supply:

• external 3.3V or

• external 5.0-12V

- Module size: W x H x D  34 mm x 83 mm x 19.3 mm

- Operating temperature:

• -25°C bis +85°C with microSD card slot

• -40°C bis +85°C without microSD card slot

- External quartz:

• quartz socket

• external 32.768KHz quartz

- PC-Connection: 2 x RS232, separable with jumpers

- Compatibility: compatible with hole matrix board and hole-distance 2.54 mm

- Circuit:  built on the recommendation of the manufacturer

- Programming:

• JTAG MKII connector or

• AVR ISP MKII connector

•  BOOTLOADER

- Pin configuration ISP & JTAG:

• ISP(PDI) connector 6-pin, standard of Atmel

• JTAG connector 10-pin, standard of Atmel

- Pin configuration of the AVR-Module:  shown at the left picture

- Functionality: tested, ready to use

- Conformity: RoHS Compliance

- Produced in Germany

- Free of charge:

one desired quartz inclusive

  7.3728 MHz;

  8.0000 MHz;

  11.0592 MHz;

  14.7456 MHz;

  16.0000 MHz

Controller:

- Atmel AVR ATxmega128A1U-AU

- 128K Bytes Flash

- 2K Bytes EEPROM

- 8K Bytes Internal SRAM

- 78 - Programmable I/O Lines

- 2 x 8 - ADC Channels

- 2 x 2 - DAC Channels

- 8 - Timer/Counter

- 8 - Serial USARTs

- 4x SPI and TWI

- 2 x 4 - PWM Channels

- Internal Oscillator

- 0 - 32 MHz

- 1.6 - 3.6V

- more ...

Description:

We offer you more flexibility by the development. By means of quartz socket it is possible to choose another frequency easier and faster. External SDRAM solves the saving problem, if the internal 8K Bytes SRAM is not enough. Due to Jumper configuration of SDRAM there are following setting possible: ON/OFF switching of external SDRAM by hand or with an I/O Pin of the controller. All pins of controller are connected with the pins of module and positioned in the logical order, that makes the development work easier. The circuit of the module is built on the recommendation of the manufacturer: SDRAM, MicroSD card slot, A/D converter, reset, ISP, JTAG, RS232. Jumper configuration helps you to make the right settings. There are following options for power supply to your choice: external voltage of 3.3 V or external voltage between 5 12 V. We offer you a very simple installation and use of AVR-Module for the beginner as well as for the advancer.

Scope of delivery:

- 1x AVR ATxmega - Module (preconfigured, tested and ready to use),

- 1x desired quartz,

- 5x Jumpers and

- invoice with 2 years guarantee

Links:

data sheet
schematic
boot loader
boot code
Eagle library
