AVR ATxmega - Development Module
Model: AL-XSLED
7.3728
MHz

8.0000
MHz

11.0592
MHz

14.7456
MHz

16.0000
MHz

Construction:

- Controller: Atmel AVR ATxmega256A3U-AU up to 32 MHz

- Equipment:

• internal voltage regulator 3.3V

• RS-232 Transceiver

- Voltage Supply:

• external 3.3V or

• external 5.0-12V

- Module size: W x H x D  27 mm x 83 mm x 19.3 mm

- Operating temperature: -40°C up to +85°C

- Quartz: quartz socket

- PC-Connection: 2 x RS232, separable with jumpers

- Compatibility: compatible with IC-Socket 64-pin and hole matrix board

- Pin-Distance: 2.54 mm

- LED: 4 LEDs, separable with jumpers

- Circuit:  built on the recommendation of the manufacturer

- Programming:

• JTAG MKII connector or

• AVR ISP MKII connector

•  BOOTLOADER

- Pin configuration ISP & JTAG:

• ISP(PDI) 6-pin, standard of Atmel

• JTAG connector 10-pin, standard of Atmel

- Pin configuration of the AVR-Module:  shown at the left picture

- Functionality: tested, ready to use

- Conformity: RoHS Compliance

- Produced in Germany

- Free of charge:

one desired quartz inclusive

  7.3728 MHz;

  8.0000 MHz;

  11.0592 MHz;

  14.7456 MHz;

  16.0000 MHz

Controller:

- Atmel AVR ATxmega256A3U-AU

- 256K Bytes Flash

- 4K Bytes EEPROM

- 16K Bytes Internal SRAM

- 50 - Programmable I/O Lines

- 12 - ADC Channels

- 2 - DAC Channels

- 7 - Timer/Counter

- 7 - Serial USARTs

- 22 - PWM Channels

- Internal Oscillator

- 3x SPI and 2x TWI

- USB 2.0 full speed

- 0 - 32 MHz

- 1.6 - 3.6V

- more ...

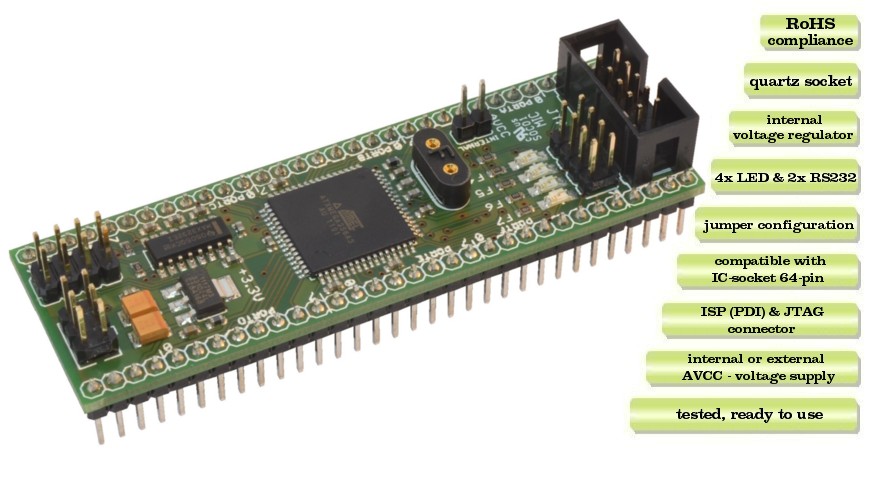

Description:

In its construction form and the contents this module is similar to the module AL-AVREB. The module AL-XSLED is equipped also with 4x LED's, 2x RS232, quartz socket, ISP (PDI) and JTAG connector. The size of this module is compatible also with the IC-socket 64-pin. IC-Socket makes possible the fast installation of AVR-Module and fits to the hole matrix board with the hole distance 2.54 mm. With the help of the quartz socket it is easier to decide for another processor frequency. All pins of micro controller are connected with the pins of module and positioned in the logical order, that makes the development work easier. With AVCC you can choose between the internal or external power supply which is adjustable with the help of the AVCC jumper. Besides that include the module internal voltage regulators 3.3 V. We offer you a very simple installation and use of AVR-Module for the beginner as well as for the advanced person.

Scope of delivery:

- 1x AVR ATxmega - Module (preconfigured, tested and ready to use),

- 1x desired quartz,

- 9x Jumpers and

- invoice with 2 years guarantee

Links:

data sheet
schematic
boot loader
boot code
Eagle library
