AVR ATxmega - Development Module Extended
Model: AL-XSLED_EXT
7.3728
MHz

8.0000
MHz

11.0592
MHz

14.7456
MHz

16.0000
MHz

Construction:

- Controller: Atmel AVR ATxmega256A3U-AU up to 32 MHz

- Equipment:

• internal voltage regulator 3.3V

• microSD card slot (push-push)

• USB-power supply/communication

• Power LED and 4x programmable LED

• Reset key

- Voltage Supply:

• external 3.3V or

• external 5.0-12V

• USB 5V

- Module size: W x H x D  34 mm x 83 mm x 19.3 mm

- Operating temperature:

• -25°C bis +85°C with microSD card slot

• -40°C bis +85°C without microSD card slot

- Quartz: quartz socket

- PC-Connection:  mini USB type B

- Compatibility: compatible with hole matrix board (hole distance 2.54 mm)

- LED: Power LED and 4 LEDs separable with jumpers

- Circuit:  built on the recommendation of the manufacturer

- Programming:

• JTAG MKII connector or

• AVR ISP MKII connector

•  BOOTLOADER

- Pin configuration ISP & JTAG:

• ISP(PDI) 6-pin, standard of Atmel

• JTAG connector 10-pin, standard of Atmel

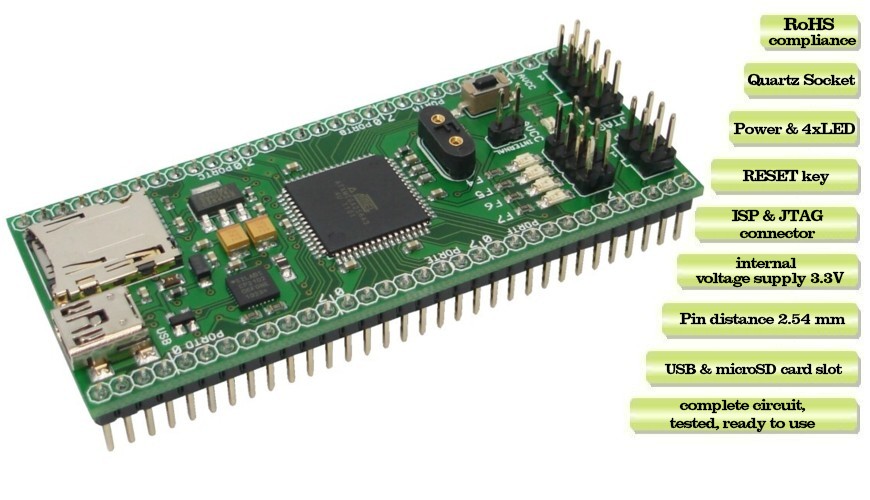

- Pin configuration of the AVR-Module:  shown at the left picture

- Functionality: tested, ready to use

- Conformity: RoHS Compliance

- Produced in Germany

- Free of charge:

one desired quartz inclusive

  7.3728 MHz;

  8.0000 MHz;

  11.0592 MHz;

  14.7456 MHz;

  16.0000 MHz

Controller:

- Atmel AVR ATxmega256A3U-AU

- 256K Bytes Flash

- 4K Bytes EEPROM

- 16K Bytes Internal SRAM

- 50 - Programmable I/O Lines

- 12 - ADC Channels

- 2 - DAC Channels

- 7 - Timer/Counter

- 7 - Serial USARTs

- 22 - PWM Channels

- Internal Oscillator

- 3x SPI and 2x TWI

- USB 2.0 full speed

- 0 - 32 MHz

- 1.6 - 3.6V

- more ...

Scope of delivery:

- 1x AVR ATxmega - Module (preconfigured, tested and ready to use),

- 1x desired quartz,

- 5x Jumpers and

- invoice with 2 years guarantee

Links:

data sheet
schematic
boot loader
boot code
Eagle library
